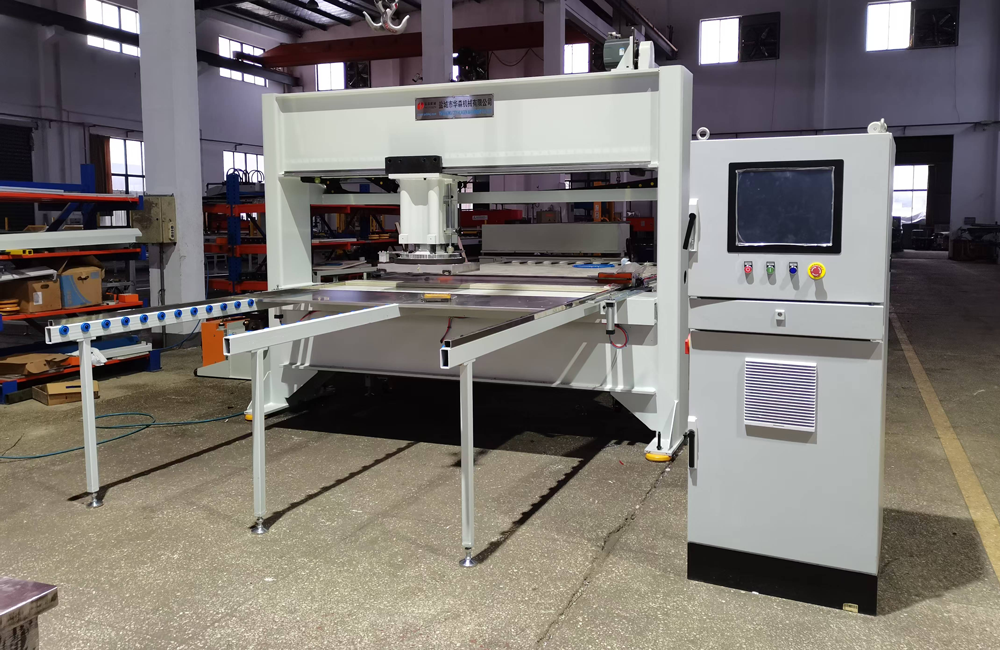

This machine is suitable for continuous punching and cutting operations on various non-metallic roll materials with forming cutting dies, especially for rubber gasket materials. Workers only need to place the materials on the working table, the machine can work according to the specified procedures, and workers only need to check and pick up the finished products, which is of high efficiency and large capacity. The whole machine is controlled by motion control card and operated by Human-Machine Interface, which can store m any kinds of cutting die data. The traverse of the punching head is driven by ball screws and servo motors with high positioning accuracy.

Adopting servo motor to drive the feeding of the roller clamp, the length of the feeding can be input directly on the touch screen. Machine with manual, point, automatic and other working methods, workers only need to pick up the finished product, greatly im proving the work efficiency and reducing labor intensity.

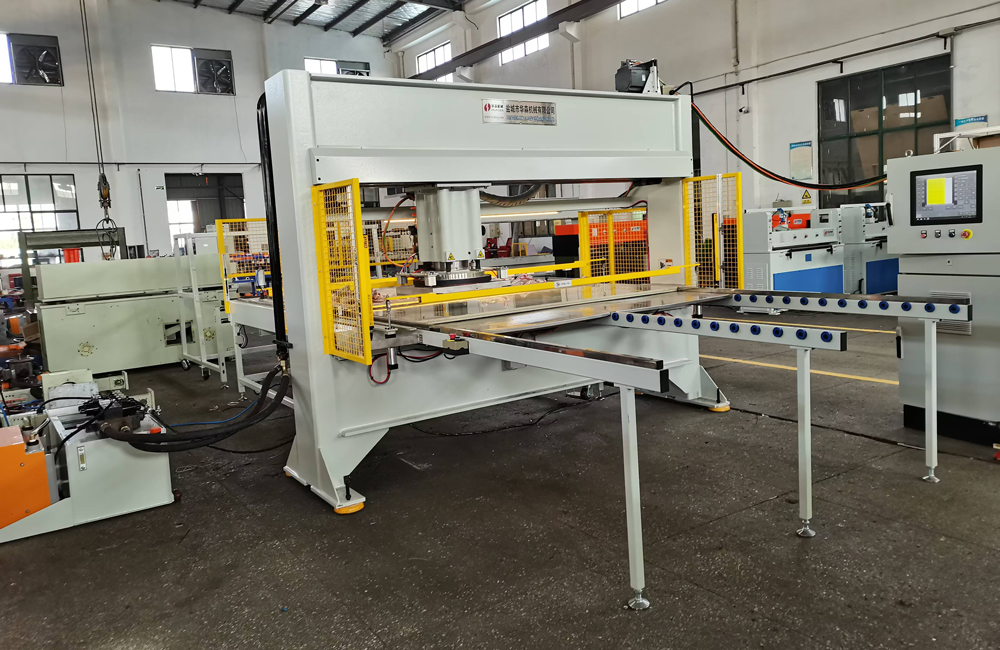

The main machine adopts gantry frame structure with high strength and no deformation.

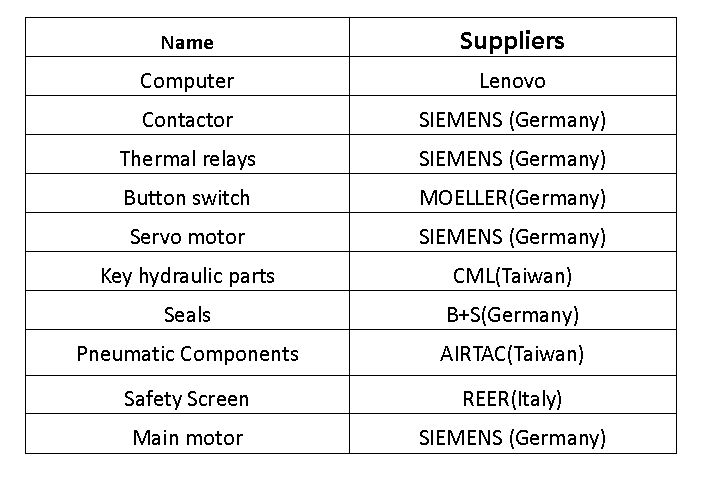

Main components suppliers
