※ Use and Characteristics
1.The machine is applicable to cutting of various nonmetal materials by die cutter.

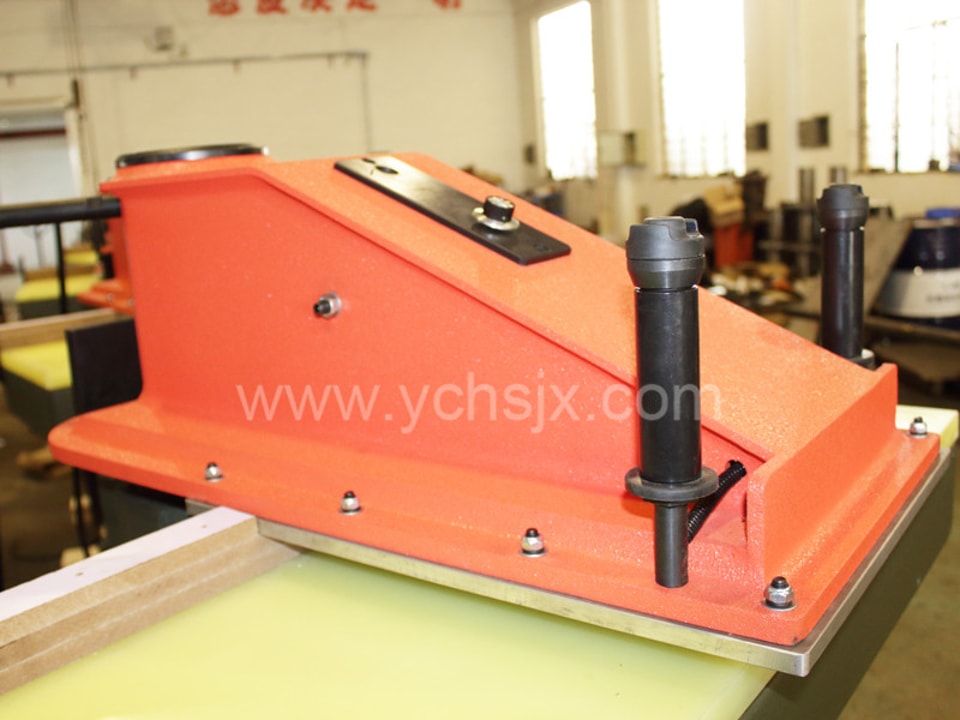

2.The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
3.High speed and low energy consumption. With only power of 0.75KW , it can output the cutting force of 20T.
4.To meet the need of frequent replacement of die cutters of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.

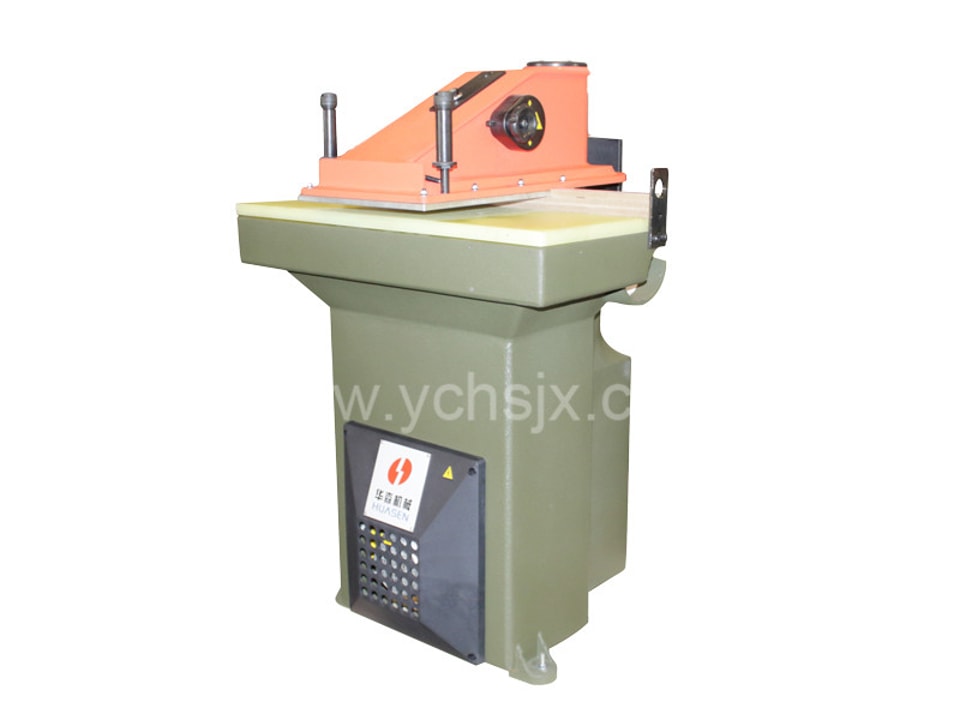

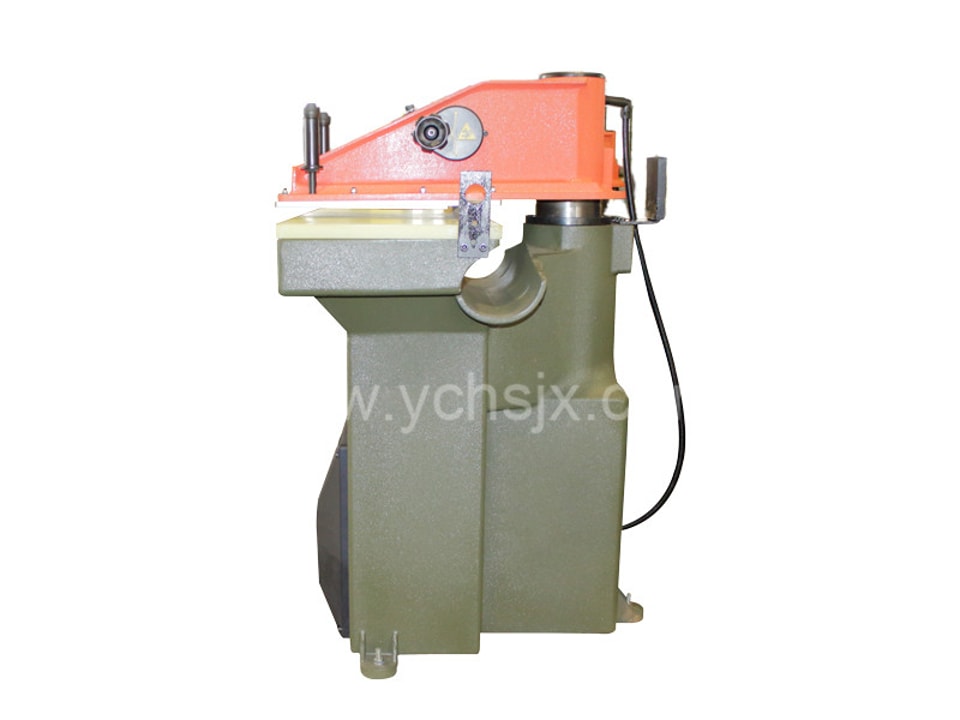

※ Technical Specification
| Model | HSA/B-200 | HSA/B-270 | HSA/B-270K | HSA/B-270L |
| Maximum Cutting Force | 200KN | 270KN | 270KN | 270KN |
| Area of work table(mm) | 900*430 | 1000*500 | 1000*500 | 1000*500 |
| Swaying arm width(mm) | 370 | 370 | 500 | 610 |
| Cutting travel(mm) | 90 | 90 | 90 | 90 |
| Motor power | 0.75kw | 1.1kw | 1.1kw | 1.1kw |
| Machine dimensions(mm) | 900*820*1400 | 1000*1020*1410 | 1000*1020*1410 | 1000*1020*1410 |
| Packing size(mm) | 1050*1000*1500 | 1150*1200*1500 | 1150*1200*1500 | 1150*1200*1500 |
| Net weight (with oil) | 650kg | 960kg | 1050kg | 1200kg |
| Gross weight | 740kg | 1120kg | 1210kg | 1360kg |
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.

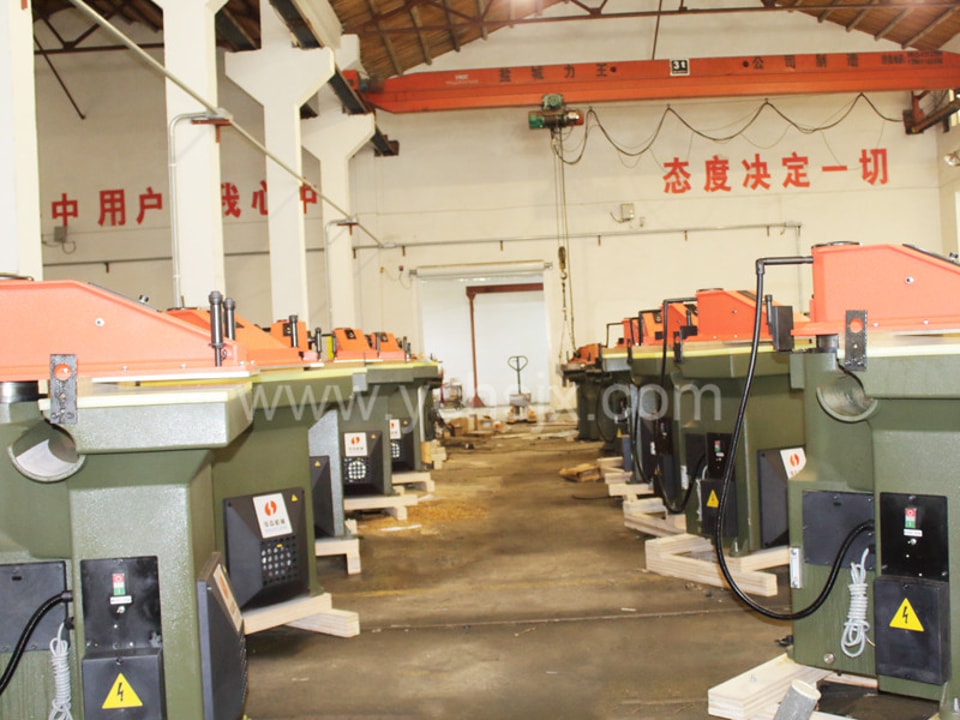

Company Environment
