※ Use and Characteristics
1. The machine is equipped with the automatic sliding platform, which can reduce labor intensity of workers and improve work efficiency by 30% with high speed.
2. With the specially designed oil way system, automatic slow cutting can be realized when the materials are pressed, the error between upper and lower layers is reduced, unnecessary low speed travel is reduce and work efficiency is enhanced.
3. The sliding platform adopts variable frequency speed control with stable running and without impact.

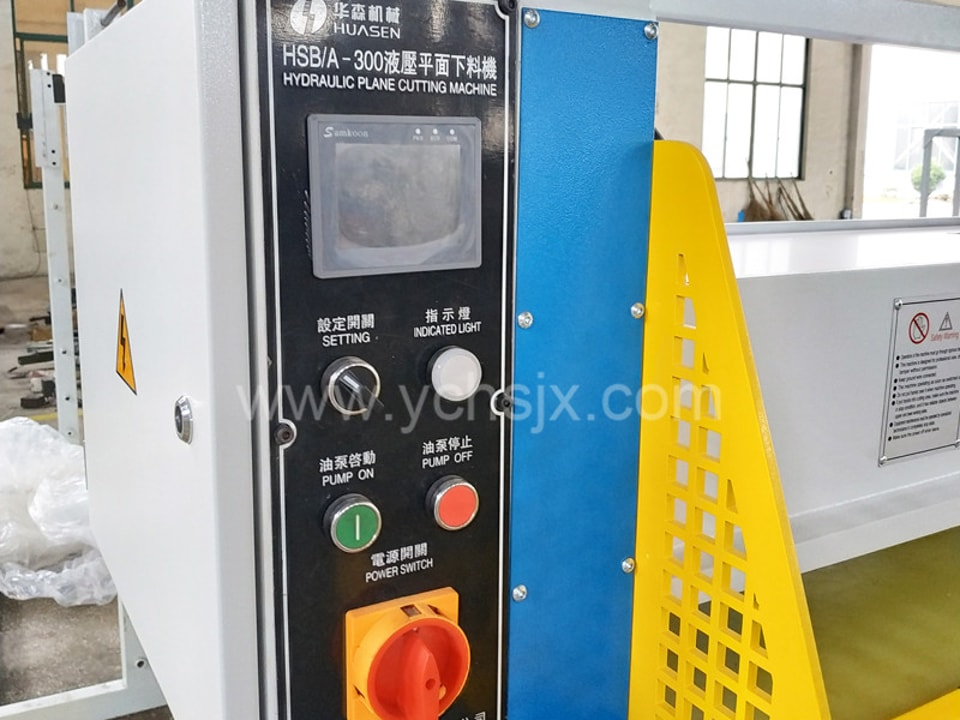

4. The machine adopts PLC control, touch screen operation with simple operation and reliable running.
5.The machine is provided with the central oil supply lubricating system, which can carry out sufficient lubricating of the moving parts of the machine and prolong the service life of the machine.
6.Operation by two hands is safe and reliable.
7.The special cutter height setting system is simple and reliable.
8. Products of special specifications can be made to order.
※ Technical Specification
| Model | HSB/A300 |
| Maximum Cutting Force(KN) | 300 |
| Tension distance | 50-150 |
| Cutting area | 1600*500 |
| Stroke adjusting range | 5-100 |
| Motor power(KW) | 2.2 |
| Feeding motor power(KW) | 0.37 |
| Weight(approx.)(kg) | 2000 |
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
