※ Use and Characteristics

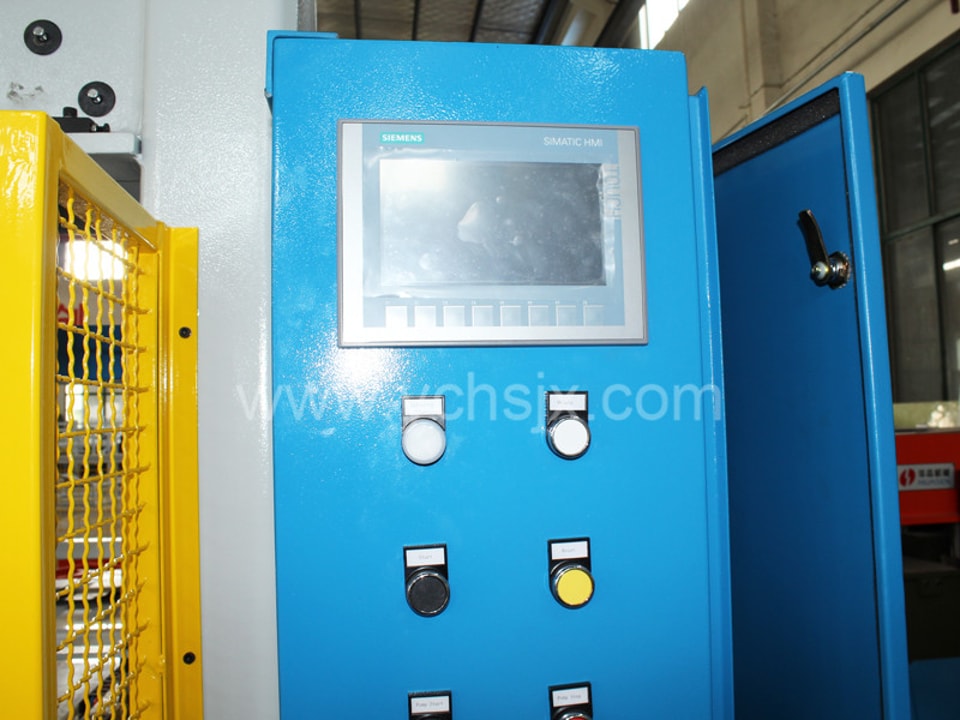

This machine is used for the continuous die-cutting of various non-metallic sheet materials using the moulded cutting die in apparel, shoes and cap, cultural articles, sports goods industry etc. The machine uses the upper computer for control purpose and supports copying cutting die, inputting electronic graphics, automatic typesetting etc. It also supports on-screen display and may precisely control machine movement along the directions of X, Y, Z and B. The punch mayautomatically perform die-cutting according to the position preset using the typesetting software.With memory function, the machine may store various operating modes. Installing a suitablecutting die makes it possible for the machine to implement manufacturing process in the presetoperating mode.

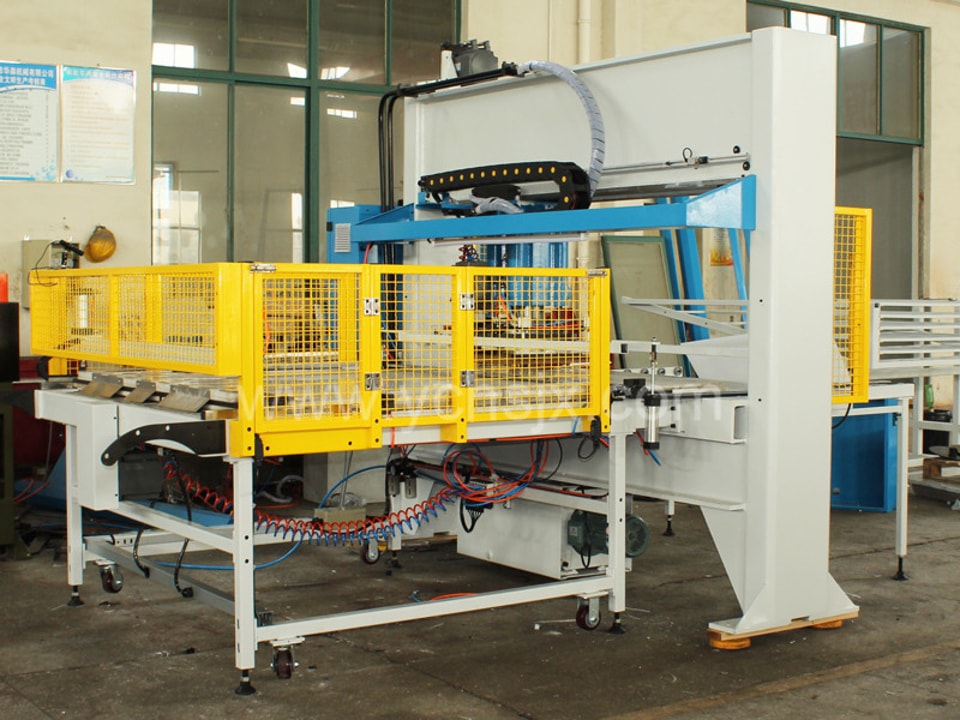

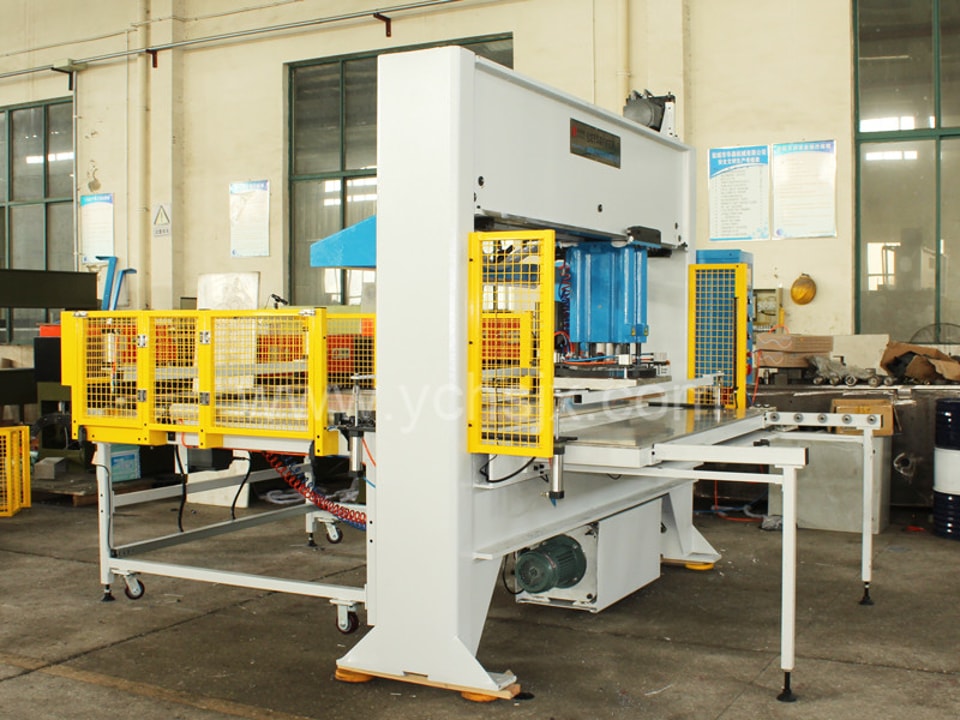

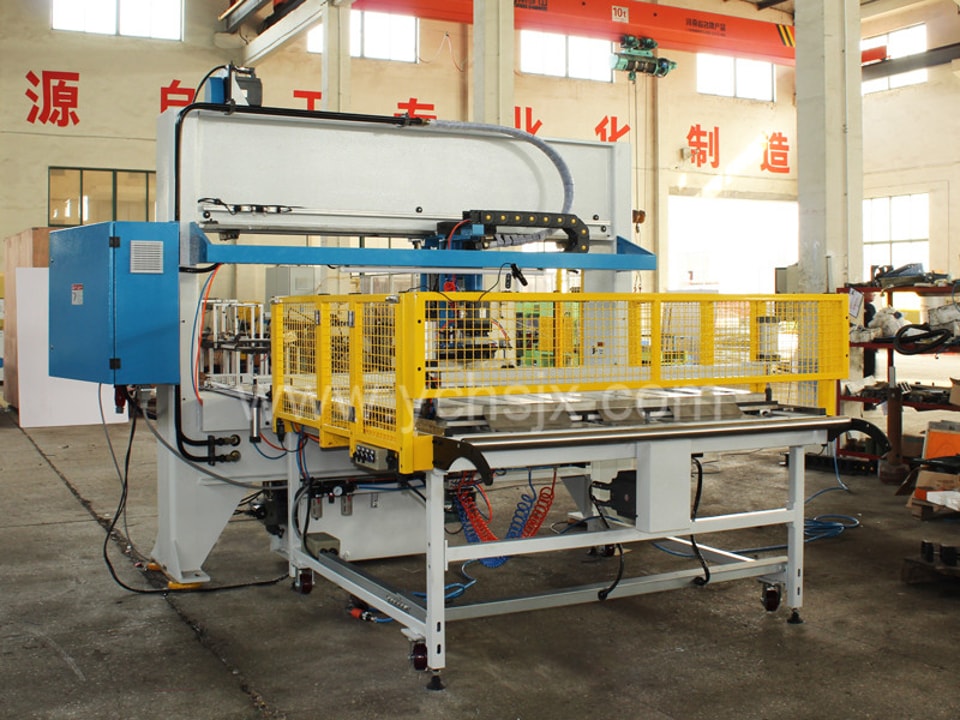

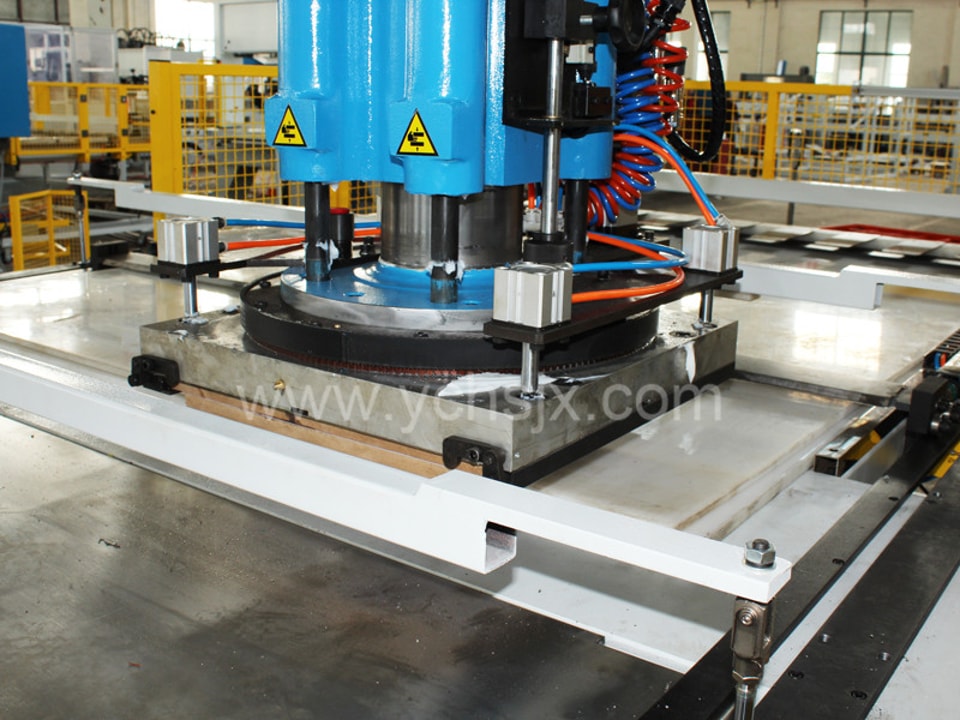

The machine is driven by a servo motor to ensure accurate feeding. The use of servo motor and ballscrew as drive systems enables the punch to achieve precise positioning. The servo motor drivenrotary punch ensures accurate die cutting position.The machine supports manual and automatic modes in which operators only need to pick up thefinished products. This may help greatly improve working efficiency and reduce labor intensity.The machine is enclosed by protective mesh. The discharge port is provided with safety light curtainto enhance the safety of the machine.Some special specifications may be customized
※ Technical Specification
| Model | HSYT-250N | HSYT-350N |
| Max cutting force/KN | 250 | 350 |
| Die-cutting area/mm | 1850X1000 | 1850X1000 |
| Adjustable stroke/mm | 200x400 | 200x400 |
| Total power/kw | 7.2 | 8.5 |
Automatic Rotary Heand Cutting Machine with Nesting Software
Automatic Rotary Die Cutters for Roller Materials PLC System
Converyor Belt Die Cutting Machine with Die Store
CNC Intelligent Hydraulic Die-Cutting Machine
Automatic Feeding and Punching Press Die Machine
Traveling Head and Feeding Cutting Machine Automaticly
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
