※ Use and Characteristics
1. The machine is applicable to semi-broken cutting of double-layer nonmetal material by laser wood die cutter.That is ,the upper layer materials are completely cut without cutting the lower layer materials. It is used for products of electronics and adhesive sticker industries.

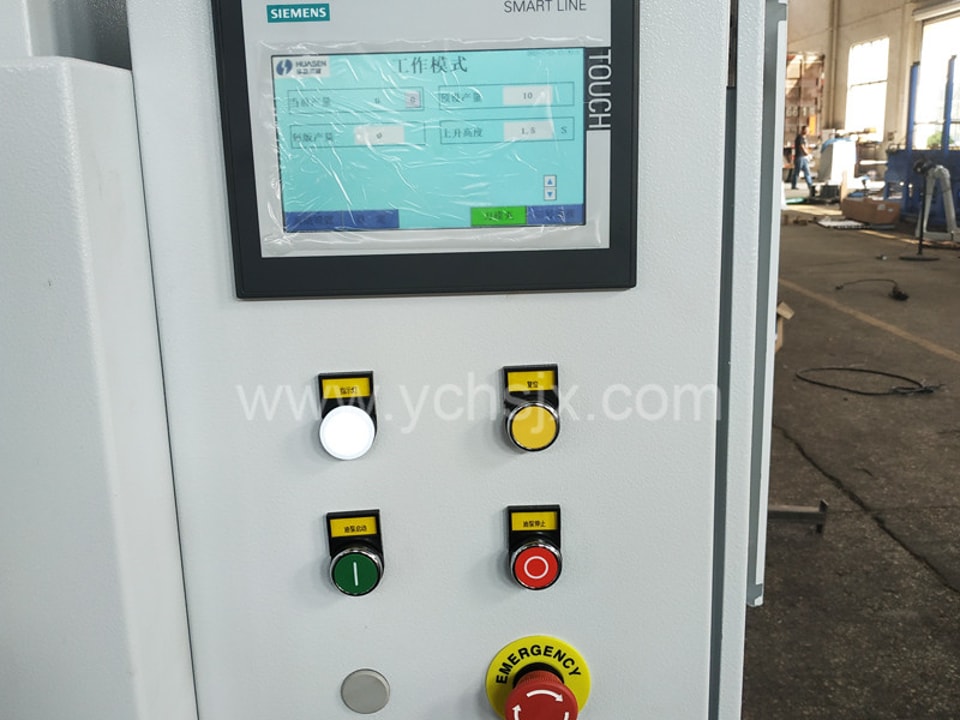

2. The whole machine adopts PLC control .Through driving the feeding board by the frequency conversion motor,the materials are input from one side of machine,and after die cutting,they will return automatically.

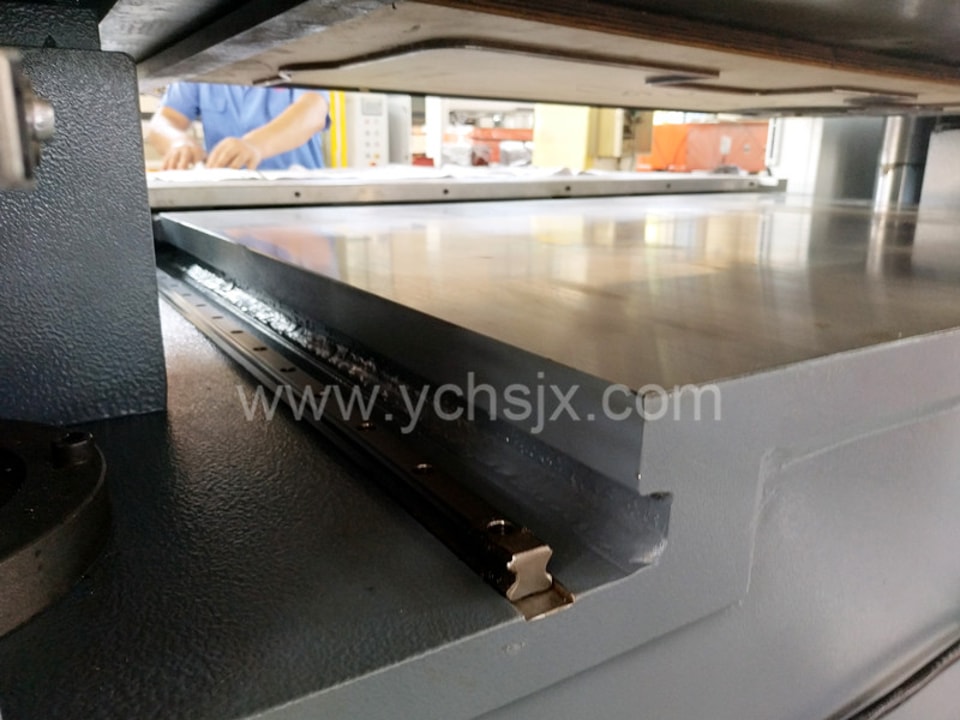

3. The main machine adopts four-column guiding,double-crank balancing and four-column blocking fine-adjustment mechanism,which can guarantee the accuracy of die cutting of machine.All movable connecting parts are equipped with central oil supply automatic lubricating device,which reduces the abrasion to the minimum extent.
4. The inlet and outlet of cutting area of the machine are installed with safety screens,which can guarantee personal safety of operators.
5. Products of special specifications can be made to order.
※ Technical Specification
| Model | HSC/J400 | HSC/J400 | HSC/J400 |
| Maximum cutting force(KN) | 400 | 400 | 400 |
| Cutting area(mm) | 600*600 | 1000*600 | 1600*600 |
| Tension distance(mm) | 50-200 | 50-200 | 50-200 |
| Main machine power(KW) | 3 | 3 | 3 |
| Machine weight(kg) | 2100 | 2600 | 3500 |
Automatic Cutting Machine with Resistant Onveryor Belt
Full Auto Feeding Cutting Machine with Larger Cutting Force
Four-Column Hyraulic Press with Double Sliding Tables
Four Column Hyraulic Beam Press with Sliding Table
High Tension Distance Beam Press with Three Parts
4 Bars Hydraulic Cutting Press Machine China Factory
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
