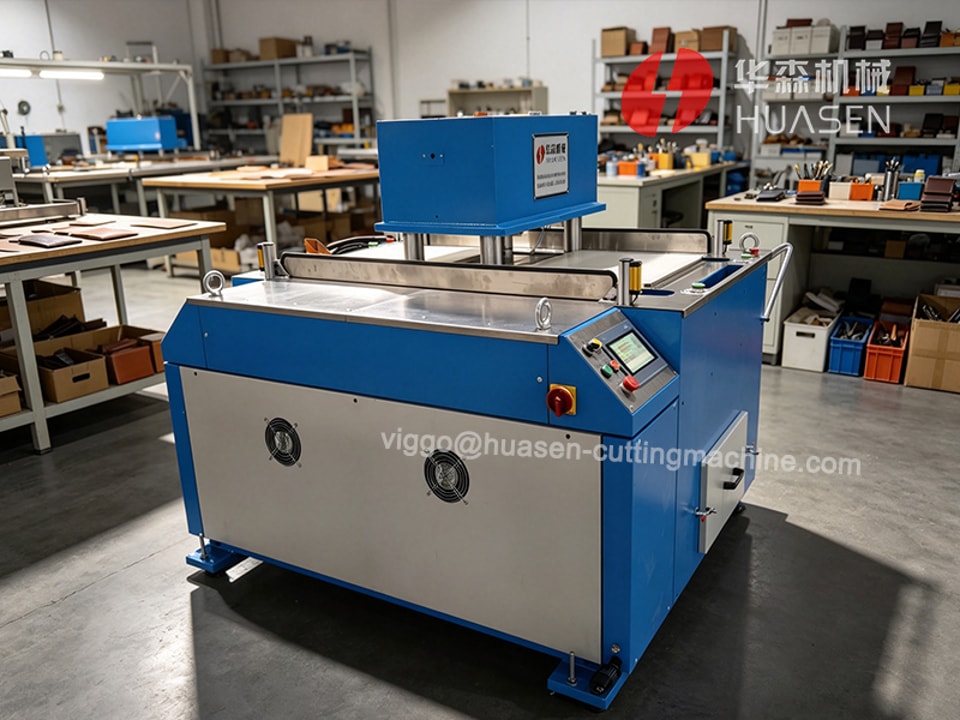

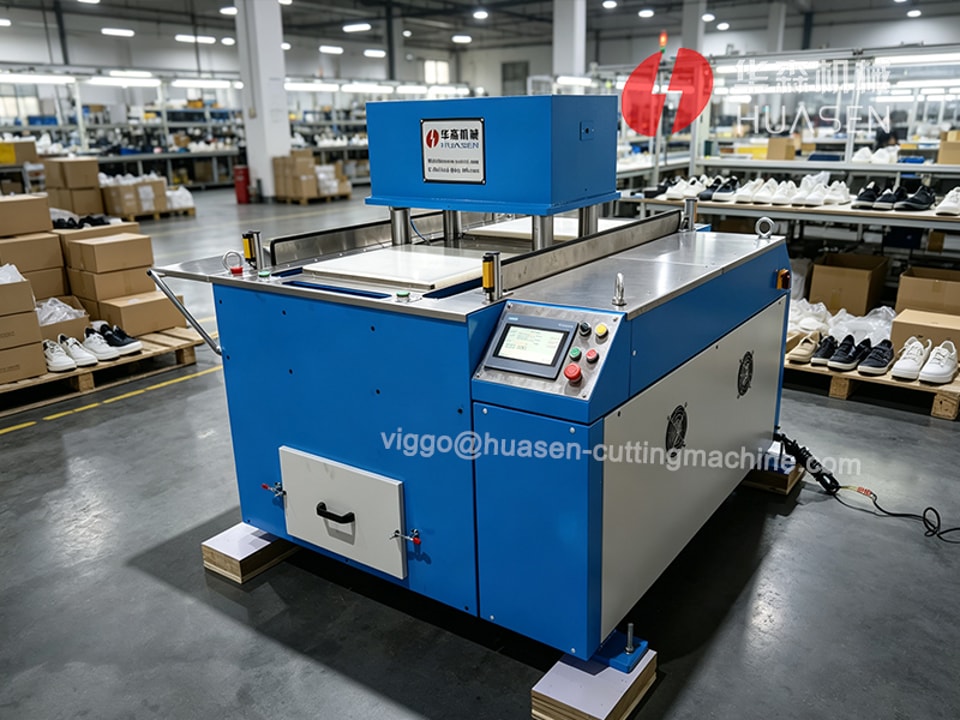

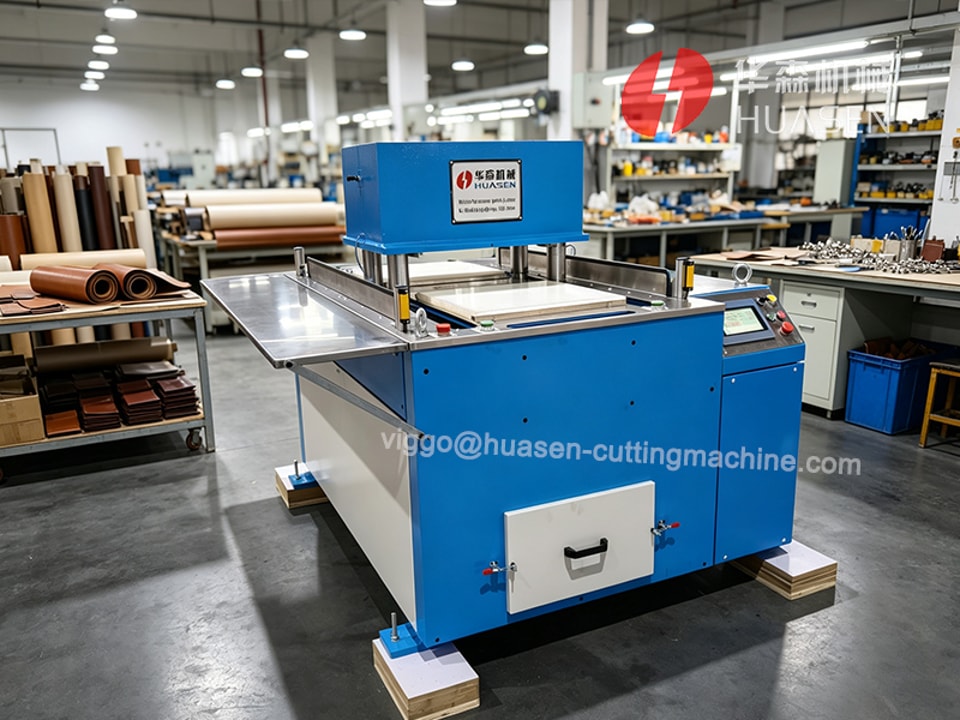

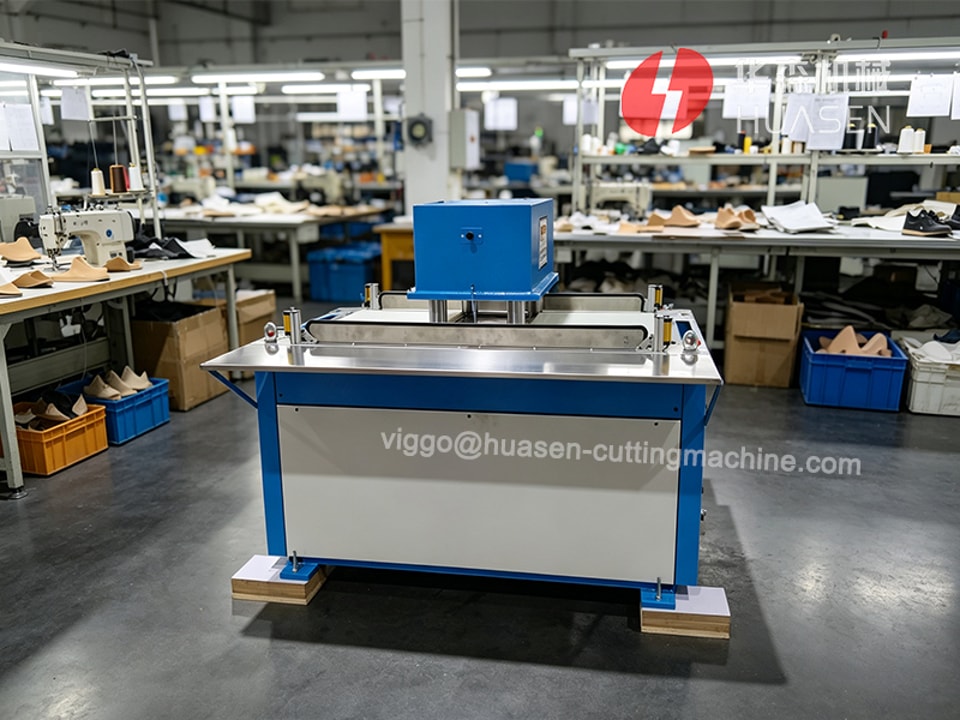

HSYL-350 Dual Stations Cutting Machine
This machine is suitable for secondary punching and small-area punching of footwear products. The machine features simple operation, dual workbenches, high efficiency and independent control.
Cutting force:350kN
Worktable size:500x500mm
Tension distance:50-150mm
Adjustable range:5-100mm
Punch slow cutting:23mm/s
Punch recovery speed:96mm/s
Slide movement speed:≤850mm/s
1) Natural or synthetic leather, 1.5-2mm thickness, cut 15 times per minute
2) Regenerated leather, 2mm thick, cut 20 times per minute. The index values are determined by the working conditions, and 15-20 times per minute mentioned above is only for reference.
This machine is suitable for punching non-metallic materials such as leather,textiles, and rubber using forming dies.
The machine adopts PLC control and human-machine interface operation, whichis easy to use.
The machine is driven by an electric motor to move the head forward and backward, providing excellent visibility and safe and reliable operation.
Special specifications can be customized
Dual workstation design improves single machine work efficiency.
Professional hydraulic system design, utilizing flywheel energy storage, fast operation during idle travel, automatic slow cutting when in contact with materials,
Optional choice: PP pad shift system, suitable for working conditions where the cutting die is fixed, prolonging the service life of the punching plate and improving
Automatic Heat Sealing Press Production Line
Automatic Cutting Machine with Resistant Conveyor Belt
Die Kiss Cutting Machine for Sticks and Tapes
High Tension Distance Beam Press with Three Parts
Full Auto Feeding Cutting Machine with Larger Cutting Force
Four-Column Hyraulic Press with Double Sliding Tables
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
