※ Use and Characteristics
1. The machine is used for cutting operation of nonmetal materials such as leather, paper, plastic film, textile and rubber etc. by die cutter.
2. The machine adopts PLC control and human-machine interface operation with convenient use.

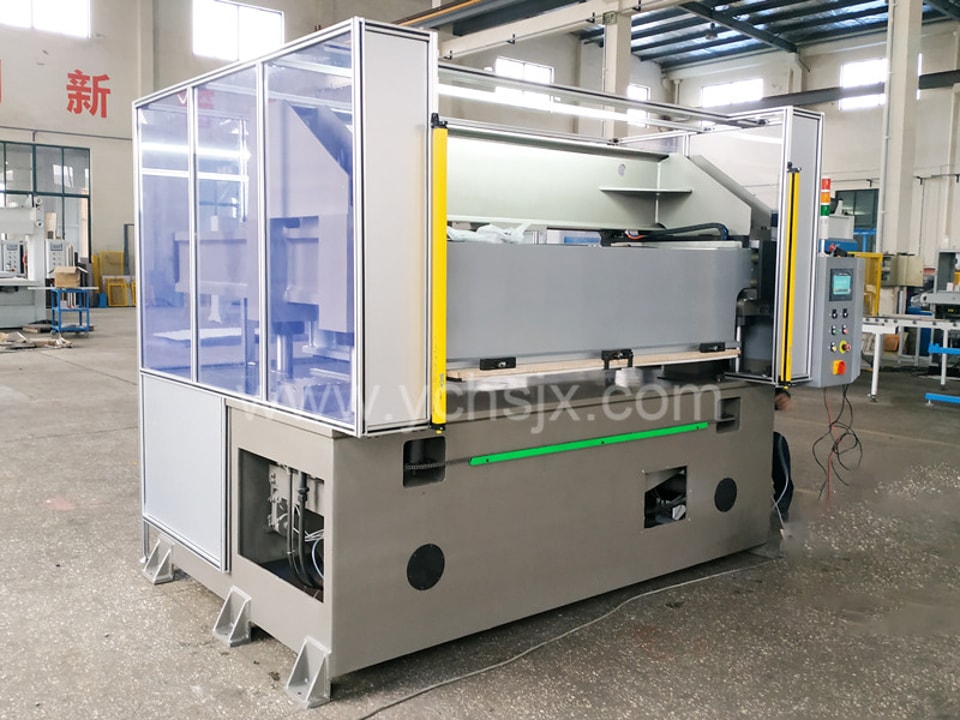

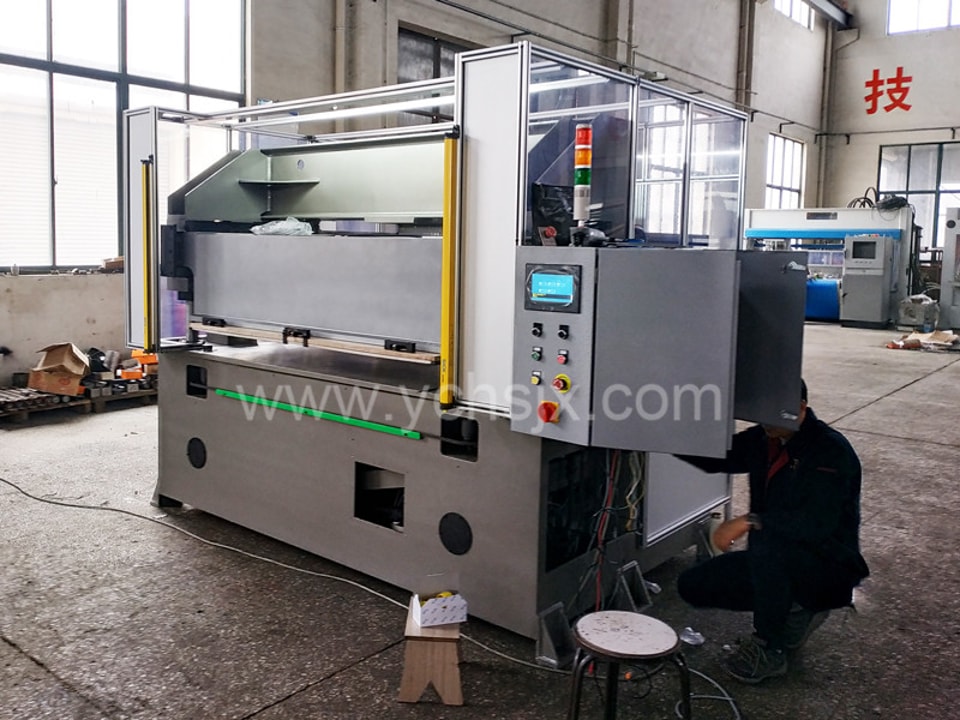

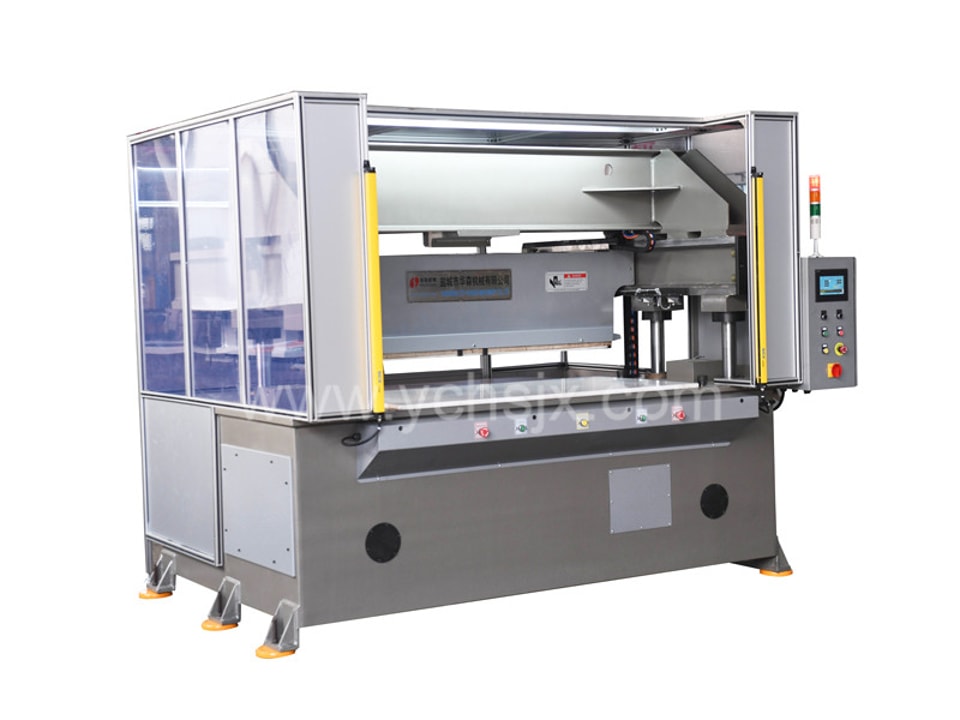

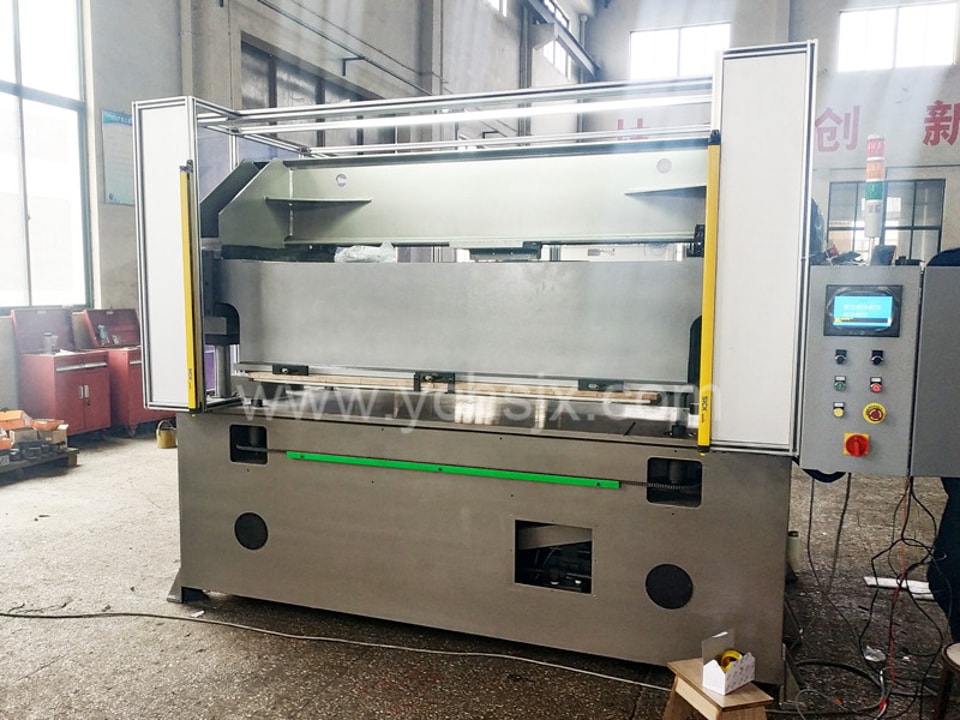

3. The machine is installed with front and rear movable cutting heads(pressing boards) driven by the motor, During the operation, it provides workers with optimal excellent visual field, safety and reliability.
4. The special hydraulic design guarantees the continuous output of cutting force so as to realize low energy consumption.
5.The machine is provided with automatic cutting depth adjustment device to guarantee the cutting precision.

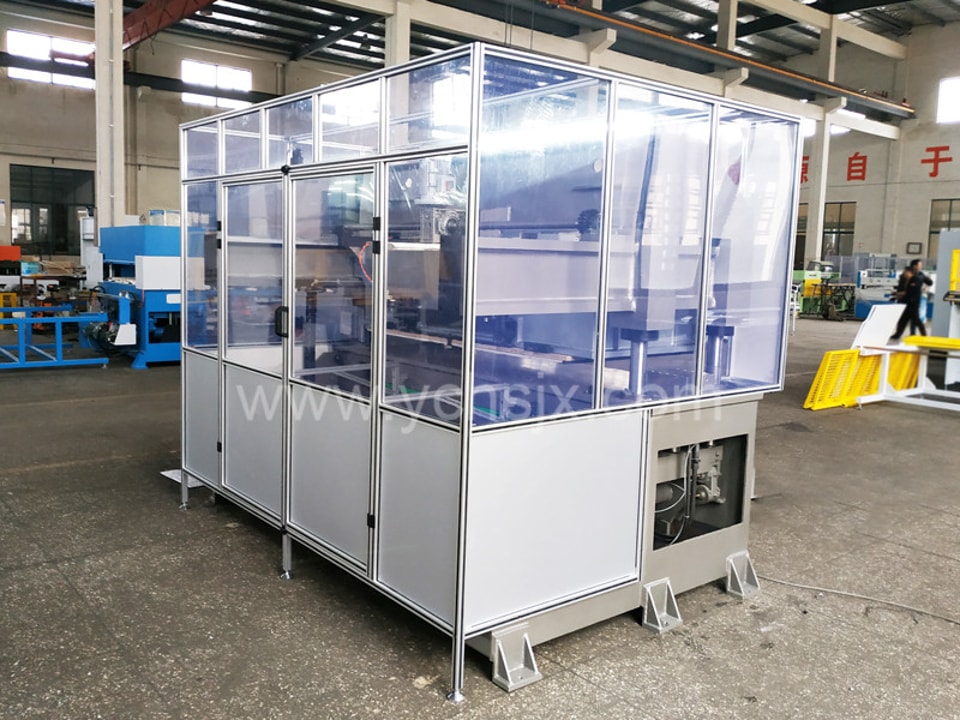

6.The machine is provided with high-precision safety screen on its operation surface, which can guarantee personal safety of operators and realize automatic operation of the machine.
7.The quenched steel plate can be optionally allocated to realize precise cutting without consumption of cutting board.
8. The heating board can be optionally allocated so that the machine can carry out pressure holding forming operation.
※ Technical Specification
| Model | HTR500 | HTR6300 | HTR800 | HTR1000 |
| Maximum Cutting Force(KN) | 500 | 630 | 800 | 1000 |
| Cutting area(mm) | 1200*850 | 1200*850 | 1600*850 | 1600*850 |
| 1600*1050 | 1600*1050 | 1800*1050 | 1800*1050 | |
| 1800*1050 | 1800*1050 | 2100*1050 | 2100*1050 | |
| Tension distance(mm) | 200-25 | 200-25 | 175-20 | 175-20 |
| Adjustable travel(mm) | 175-20 | 175-20 | 175-20 | 175-20 |
| Automatic blocking adjustment range(mm) | 40 | 40 | 40 | 40 |
| Main motor power(kw) | 3.0 | 3.0 | 5.5 | 5.5 |
Four-Column Hyraulic Press with Double Sliding Tables
Four-Column Die Cutting Machine 200 Tons Cutting Force
Four Column Hyraulic Beam Press with Sliding Table
Converyor Belt Die Cutting Machine with Die Store

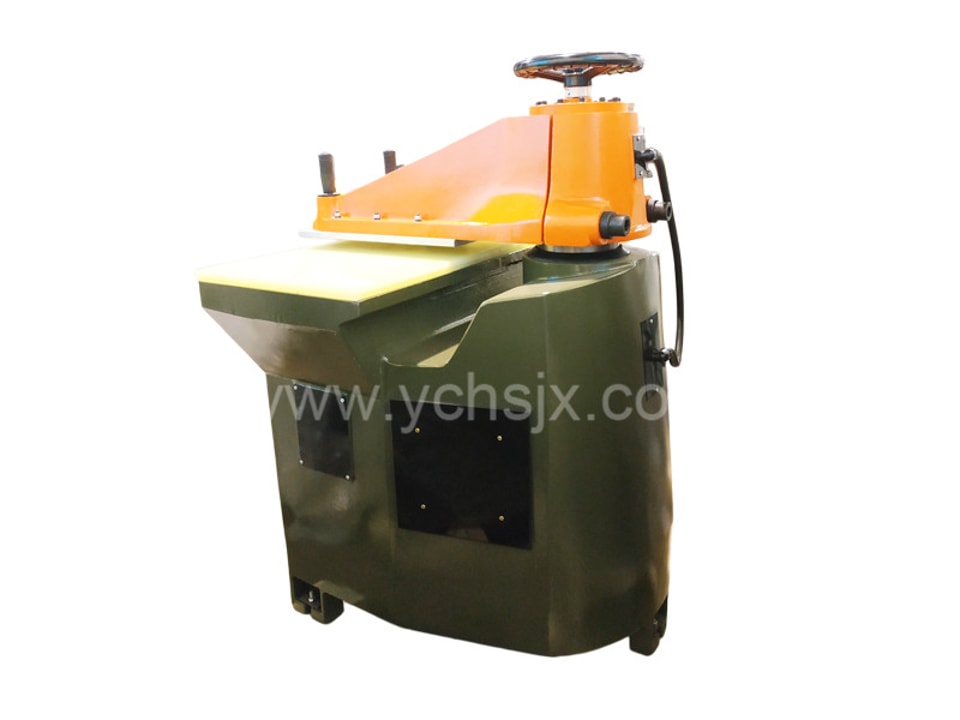

Hydraulic Rocker Cutting Machine for Footwear | Huasen
Traveling Beam Punching Machine with Safety Guard
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
