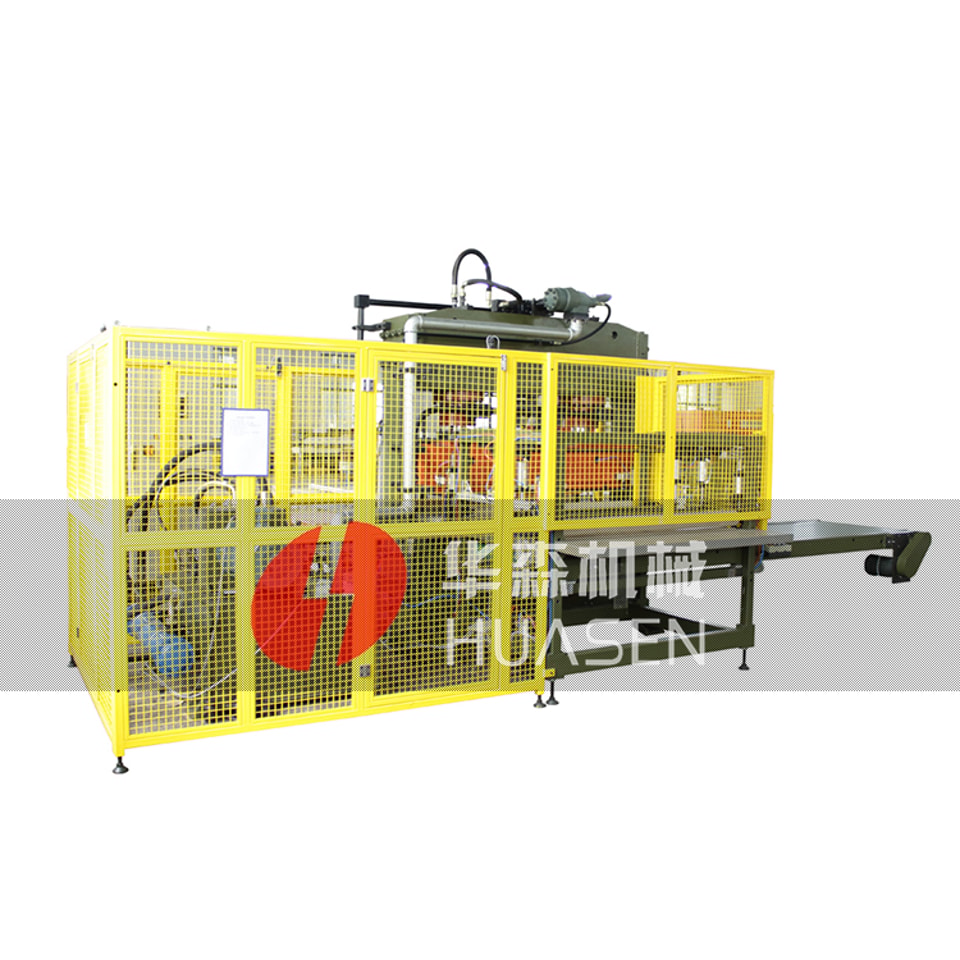

Automatic Slipper Production Line
The automatic slipper punching and cutting production line is mainly composed of the feeding system, the punching and cutting system, the discharging system and the conveying system. It is mainly used for the production and processing of EVA slippers, with high efficiency and fast speed.
1、Max. cutting force: 1500KN
2、Working table size: 1400X500mm
3、The max width of material: ≤1400mm
4、Tension distance: 200mm
5、Accuracy of feeding: ≤0.04%
6、Working pressure of hydraulic system: ≤32MPa
7、Stroke adjustment range: 25-150mm
8、Main motor power： 15KW
9、Air supply ≥0.6MPa
10、Power supply： AC380V/50Hz
11、Machine noise: ≤70dB

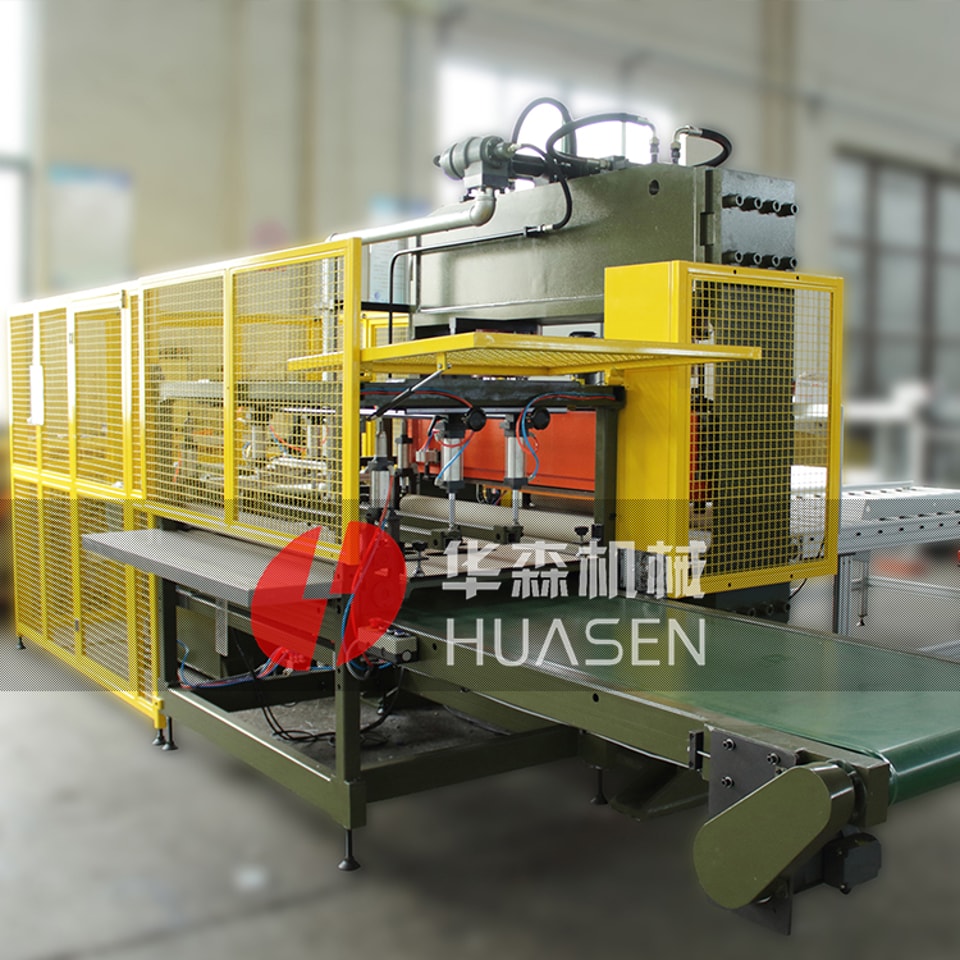

1. The automatic slipper production line consists of the material frame, feeding mechanism, main cutting machine, automatic feeding out system and the stacking system. All of them are automatic.
2. The main machine adopts precision guiding mechanism,which can guarantee that the cutting depth and position.
3. The automatic slipper production line is equipped with pneumatic clamp device to make sure the replacement of die cutter convenient and prompt.
4. The roller mechanism driven by the servo motor for feeding system.
5. The automatic slipper production line can be specially designed and manufactured according to customer requirements.
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
