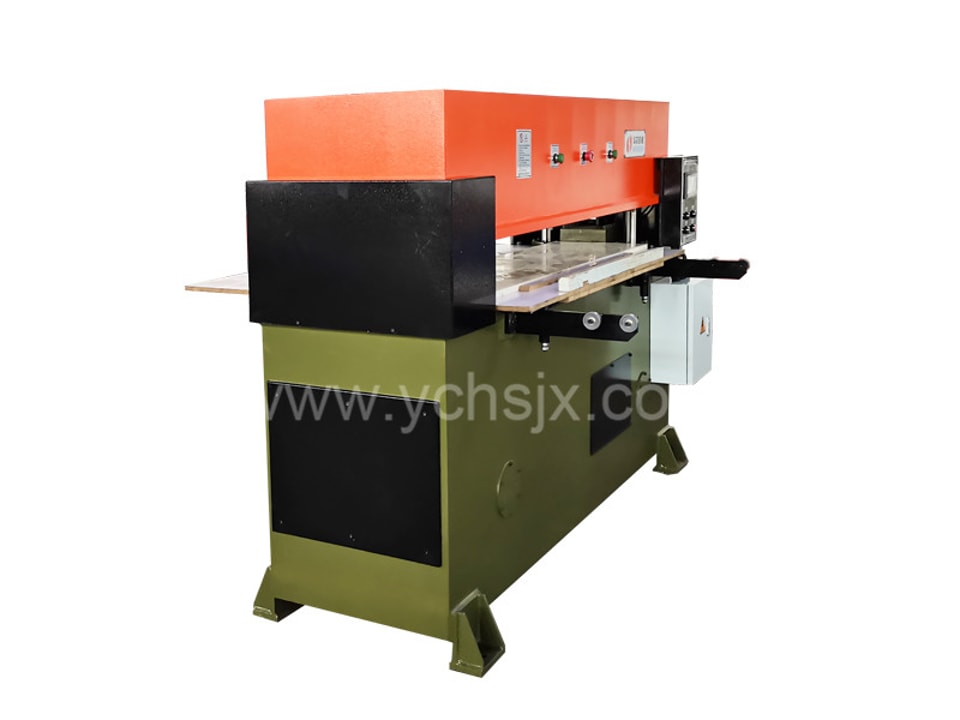

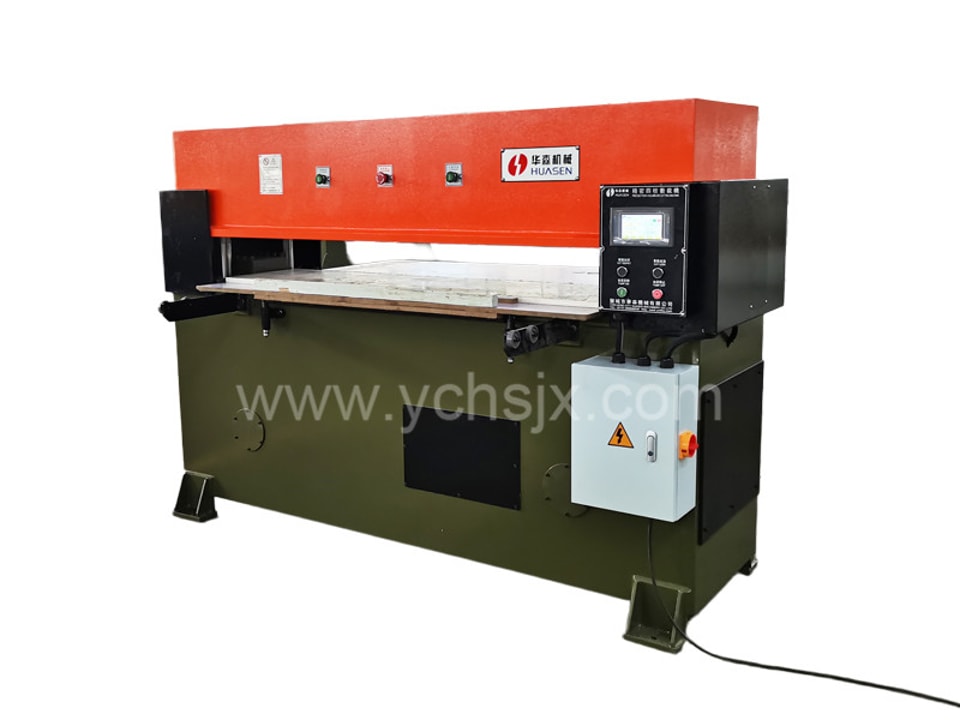

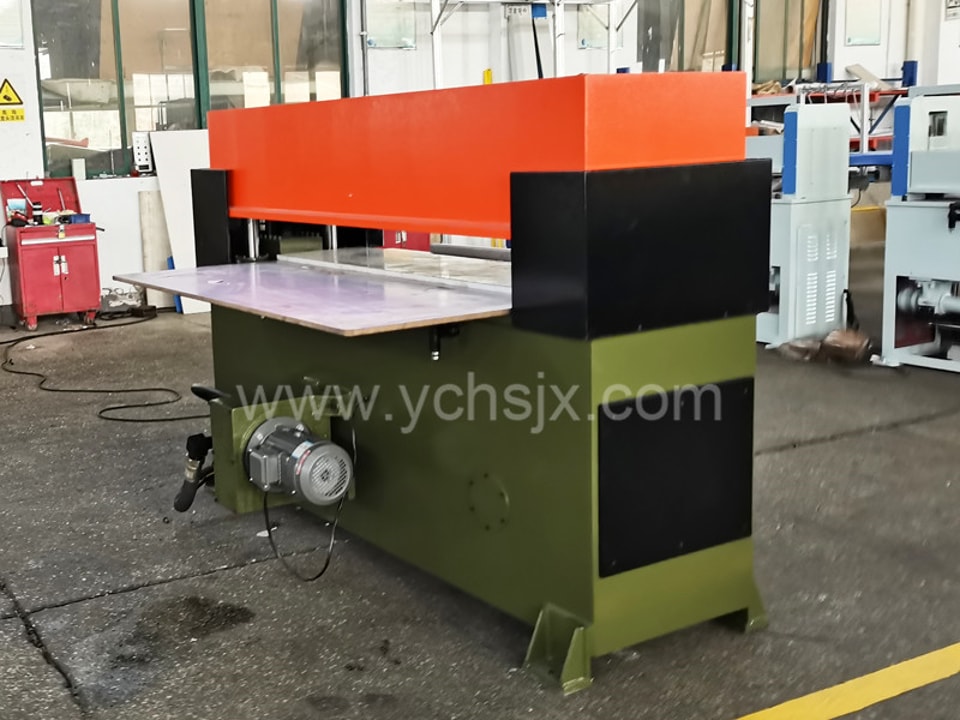

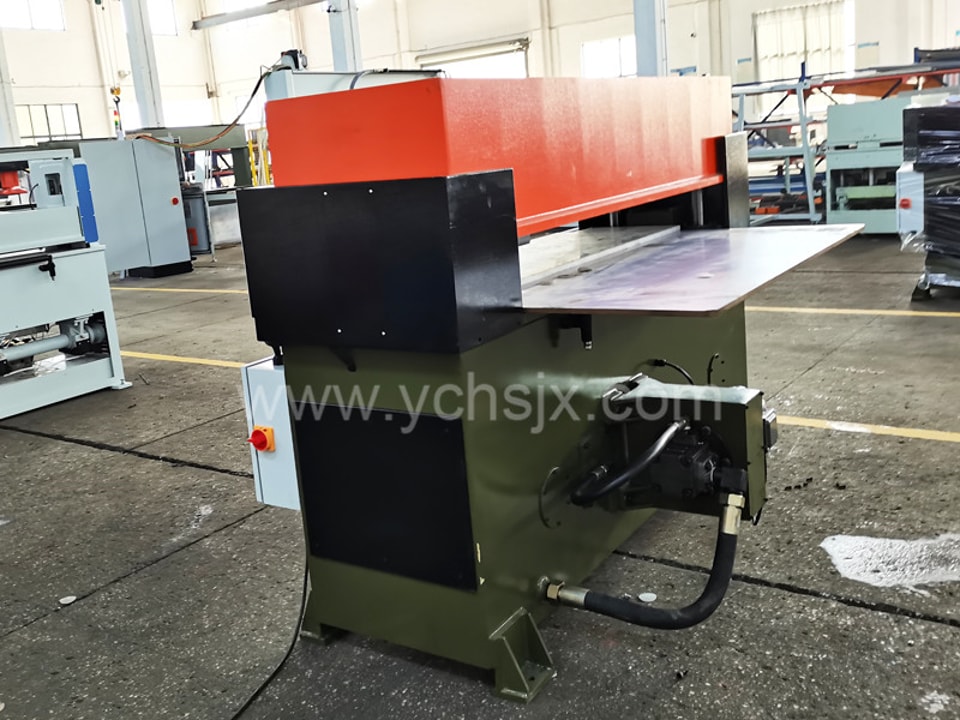

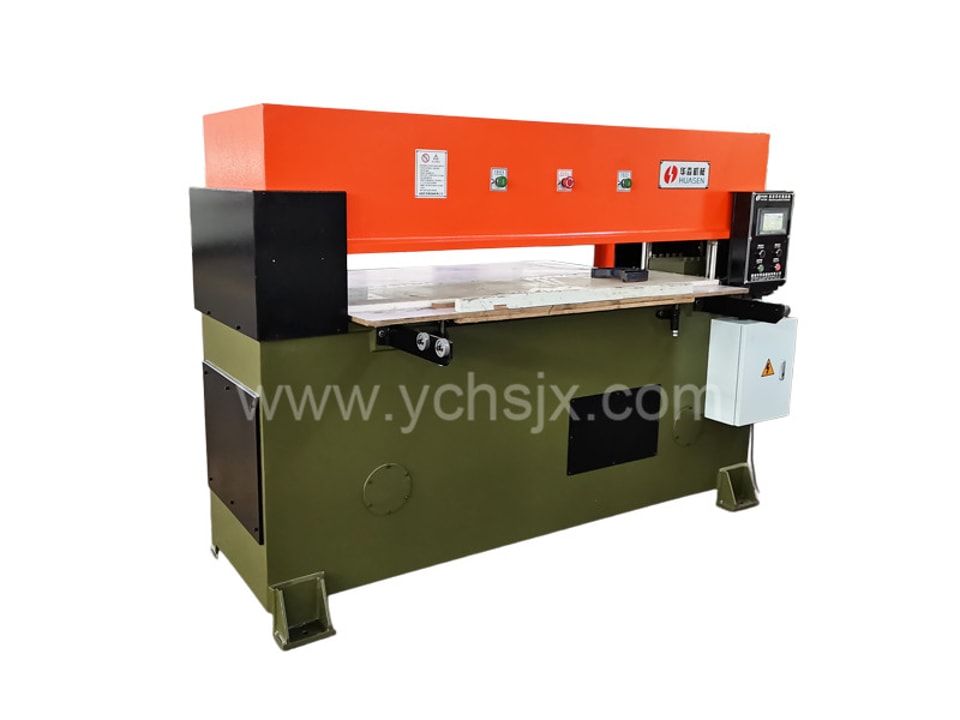

※ Use and Characteristics
1. The machine is widely applicable to cutting of various nonmetal materials by die cutter.
2. Double oil cylinder and precise double-crank connecting rod balancing mechanism are adopted,which can guarantee that the cutting depth at every cutting position is same.
3. With special setting mechanism,and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
6. Products of special specifications can be customized. The maximum cutting force can reach 4000KN.
※ Technical Specification
| Model | HSC200 | HSC300 | HSC350 | HSC400 | HSC500 | HSC600 | HSC800 | HSC1000 | HSC1300 | HSC1500 | HSC2000 |
| Maximum Cutting Force | 200KN | 300KN | 350KN | 400KN | 500KN | 600KN | 800KN | 1000KN | 1300KN | 1500KN | 2000KN |
| Tension distance | 50-245 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
| 50-245 | 50-245 | 50-245 | 50-245 | ||||||||
| Cutting area | 1000*450 | 1600*500 | 1600*610 | 1600*610 | 1600*800 | 1600*900 | 1600*900 | 1600*900 | 1600*1000 | 1600*1000 | 1600*1000 |
| 1250*500 | 1250*610 | 1250*610 | 1250*800 | 1400*900 | 1400*900 | 1400*900 | 1400*1000 | 1400*1000 | 1400*1000 | ||
| Main motor power | 1.5kw | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 11kw | 11kw |
| Weight(approx.)(kg) | 1200 | 1400 | 2100 | 2300 | 3800 | 4800 | 6300 | 7800 | 10000 | 11500 | 13500 |
| 1600 | 1900 | 2000 | 3600 | 4600 | 6100 | 7600 | 9500 | 11200 | 13000 |
Automatic Cutting Machine with Resistant Onveryor Belt
Full Auto Feeding Cutting Machine with Larger Cutting Force
Die Kiss Cutting Machine for Sticks and Tapes
Four-Column Hyraulic Press with Double Sliding Tables
Four Column Hyraulic Beam Press with Sliding Table
High Tension Distance Beam Press with Three Parts
FAQ
Which industries are hydraulic cutting machines suitable for?
Hydraulic cutting machines are widely used in industries such as footwear materials, automotive interiors, packaging, textiles, leather, foam, and sporting goods, meeting the need for precision cutting across various materials.
What materials can the cutting machine process?
The equipment is suitable for a wide range of non-metallic materials—including leather, EVA, foam, rubber, textiles, cardboard, and composites—accommodating various thickness and hardness requirements.
Can the cutting machine be customized?
Yes. We provide professional customization solutions based on customer-specific materials, product dimensions, production efficiency, and automation needs to meet specialized processing requirements.
What after-sales services are provided for the cutting machine?
We offer technical consultation, installation guidance, operation training, and maintenance support to help customers quickly resolve operational issues and ensure continuous production.
Is the cutting machine available for export?
Yes. Our products have been exported to markets including Europe, the USA, Japan, and South Korea; we provide equipment packaging and technical services that meet international standards.
What is the delivery lead time for the cutting machine?
Delivery times for standard equipment vary by model, while production schedules for customized equipment are determined based on specific configuration requirements to ensure timely delivery.
